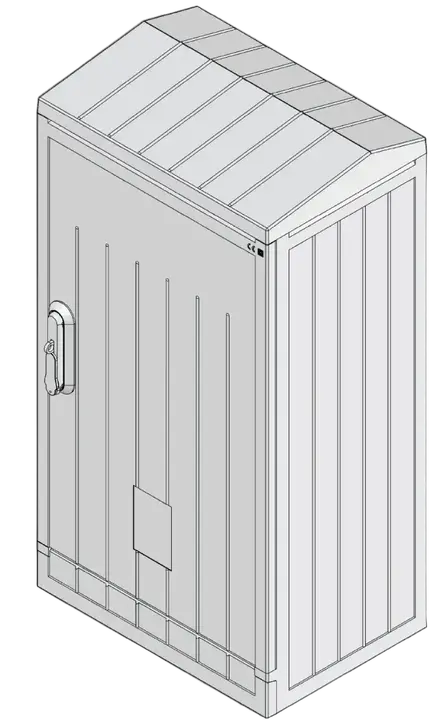

KVR 0 001601601

Specifikacija

Koda izdelka:
001601601
Opis:
KVR 0
Nazivni tok (A):
630
Nazivna napetost (V):
400
IP zaščita:
IP 44
Material:
Poliester, ojačan s steklenimi vlakni
Odpornost na udarce:
IK 10
Velikost (hxwxd) mm:
780x535x320
Color:
RAL 7035

Dokumenti

Produkt

EAN koda izdelka
3838895998440
Teža izdelka
16.2 kg
Carinska tarifa
85381000

Osnovno pakiranje

Osnovno pakiranje
1
EAN koda osnovnega pakiranja
3838895998433
Teža osnovnega pakiranja
16.2 kg
Volumen osnovnega pakiranja
103.53

Transportno pakiranje

Pakirna količina
1
EAN koda odpremnega pakiranja
3838895787570
Teža odpremnega pakiranja
16.2 kg
Volumen pakirne embalaže
103.53
Odpremna količina
10
Volumen paletnega pakiranja
1035.3

Slike in diagrami

Programska oprema

Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
001601601Cable distribution board, KVR 0ETIBOXFree-standing cable distribution cabinets KVRFree-standing cable distribution cabinets KVRFree-standing cable distribution cabinets KVRFree-standing cable distribution cabinets KVREnclosureEnclosures, distribution boards, equipmentFree standing cable distribution cabinetsCable distribution box-emptyRated current 630AType Cable distribution box-emptyRated voltage 400VSize 0Height 862mmWidth 596mmDepth 320mmIP rating IP 44Color RAL 7035Catalogue Group Cable distribution boxMechanical resistance IK 10Material Polyester reinforced with fiber glassSize 0DINSize (hxwxd) mm 780x535x320Cable distribution board KVR
