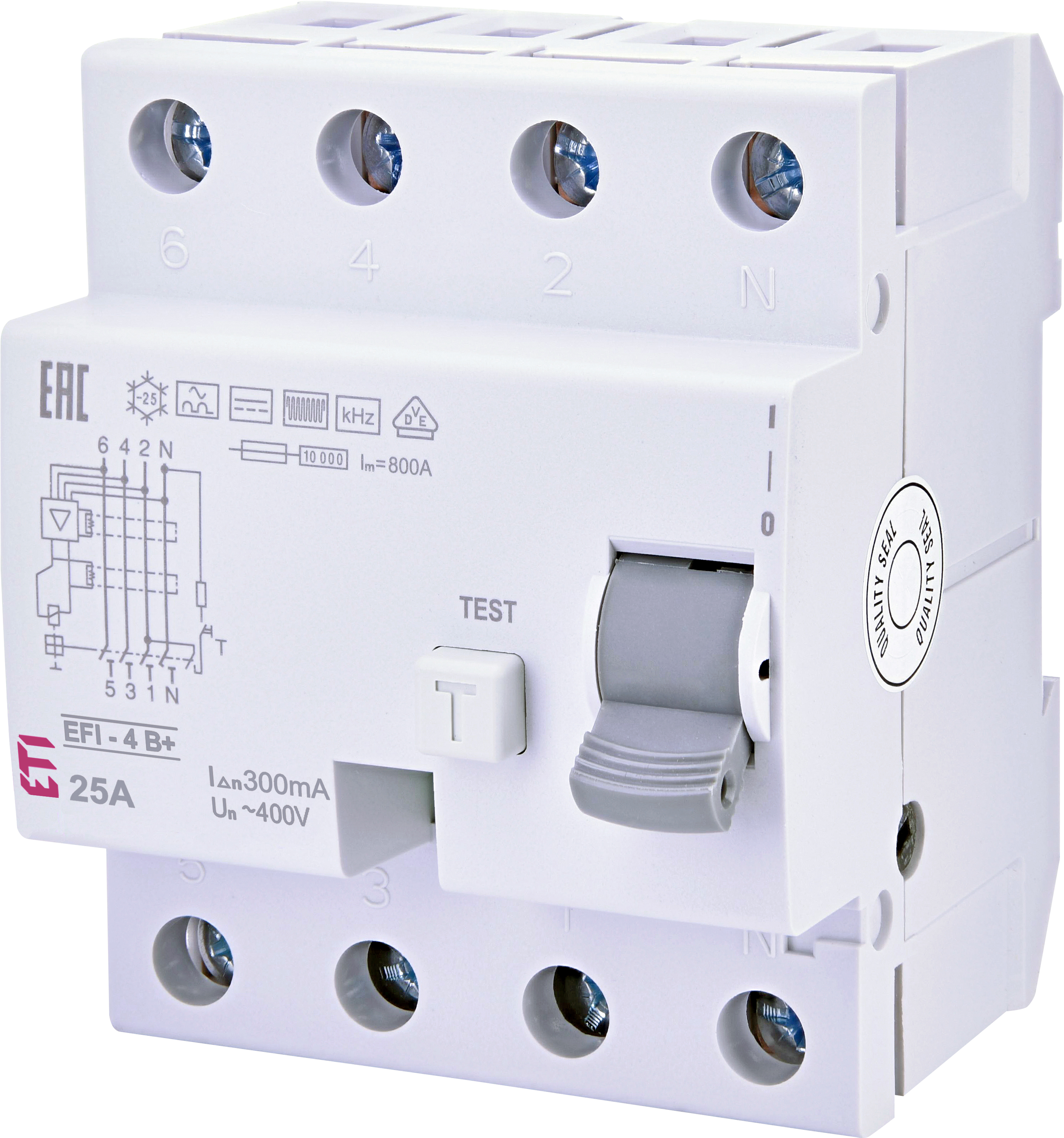

Zaš. stikalo na diferenčni tok EFI-4 B+ 25/0.3 002064647
Specifikacija
- Koda izdelka:
- 002064647
- Opis:
- EFI-4 B+ 25/0.3
- Ime razreda:
- Zaš. stikalo na diferenčni tok
- Nazivni diferenčni tok (A):
- 0.03
- Tip toka:
- B+
- Nazivni tok (A):
- 25
- Tip:
- B+
- Število polov:
- 3+N
- Nazivni pogojni kratkostični tok Inc (kA):
- 10
- Nazivna napetost (V):
- 400
- Nazivna frekvenca (Hz):
- 50/60
- Nazivni presek:
- 1-25
- Standardi:
- IEC/EN 61008, IEC/EN 62423, VDE 0664-400
- IP zaščita:
- IP20
- Način montaže:
- TH 35
- Globina (mm):
- 68
Dokumenti
Logistični podatki
Produkt
- Carinska tarifa
- 85362010
- logis_net_width
- 72 mm
- logis_net_height
- 88 mm
- logis_net_depth
- 70 mm
Osnovno pakiranje
- Količina
- 1
- EAN
- 3838895693178
- Teža
- 0.354 kg
Transportno pakiranje
- Količina
- 27
- EAN
- 3838895693185
- Teža
- 9.92 kg
- Odpremna količina
- 1404
ETIM klasifikacija
- Klasifikacija
- EC000003
- Ime razreda
- Residual current circuit breaker (RCCB)
- Number of poles
- 4
- Rated voltage
- 400V
- Rated current
- 25A
- Rated fault current
- 300mA
- Rated insulation voltage Ui
- 500V
- Rated impulse withstand voltage Uimp
- 4kV
- Mounting method
- DIN rail
- Leakage current type
- B+
- Short-circuit breaking capacity (Icw)
- 10kA
- Frequency
- Other
- Degree of protection (IP)
- IP20
- Width in number of modular spacings
- 4
- Built-in depth
- 68mm
- Ambient temperature during operating
- -25…55°C
- Connectable conductor cross section multi-wired
- 1…25mm²
- Connectable conductor cross section solid-core
- 1…25mm²
