Zaš. stikalo na diferenčni tok EFI-P4R A 125/0.3 002061886
Specifikacija
- Koda izdelka:
- 002061886
- Opis:
- EFI-P4R A 125/0.3
- Ime razreda:
- Zaš. stikalo na diferenčni tok
- Nazivni diferenčni tok (A):
- 0.3
- Tip toka:
- A
- Nazivni tok (A):
- 125
- Tip:
- A
- Število polov:
- 4
- Nazivni pogojni kratkostični tok Inc (kA):
- 10
- Nazivna napetost (V):
- 400
- Nazivna frekvenca (Hz):
- 50/60
- Nazivni presek:
- 1-50
- Standardi:
- IEC/EN 61008-1
- IP zaščita:
- IP20
- Način montaže:
- TH 35
- Globina (mm):
- 71
Dokumenti
Logistični podatki
Produkt
- Carinska tarifa
- 85362090
- logis_net_width
- 70 mm
- logis_net_height
- 85 mm
- logis_net_depth
- 69 mm
Osnovno pakiranje
- Količina
- 1
- EAN
- 3838895969259
- Teža
- 0.38 kg
Transportno pakiranje
- Količina
- 27
- EAN
- 3838895969266
- Teža
- 10.56 kg
- Odpremna količina
- 1404
ETIM klasifikacija
- Klasifikacija
- EC000003
- Ime razreda
- Residual current circuit breaker (RCCB)
- Number of poles
- 4
- Rated voltage
- 400V
- Rated current
- 125A
- Rated fault current
- 300mA
- Rated insulation voltage Ui
- 500V
- Rated impulse withstand voltage Uimp
- 4kV
- Mounting method
- DIN rail
- Leakage current type
- A
- Selective protection
- Ne
- Short-time delayed tripping
- Ne
- Short-circuit breaking capacity (Icw)
- 10kA
- Surge current capacity
- 0,25kA
- Frequency
- 50/60 Hz
- Additional equipment possible
- Da
- With interlocking device
- Ne
- Degree of protection (IP)
- IP20
- Width in number of modular spacings
- 4
- Built-in depth
- 71mm
- Ambient temperature during operating
- -25…40°C
- Connectable conductor cross section multi-wired
- 1…50mm²
- Connectable conductor cross section solid-core
- 1…50mm²

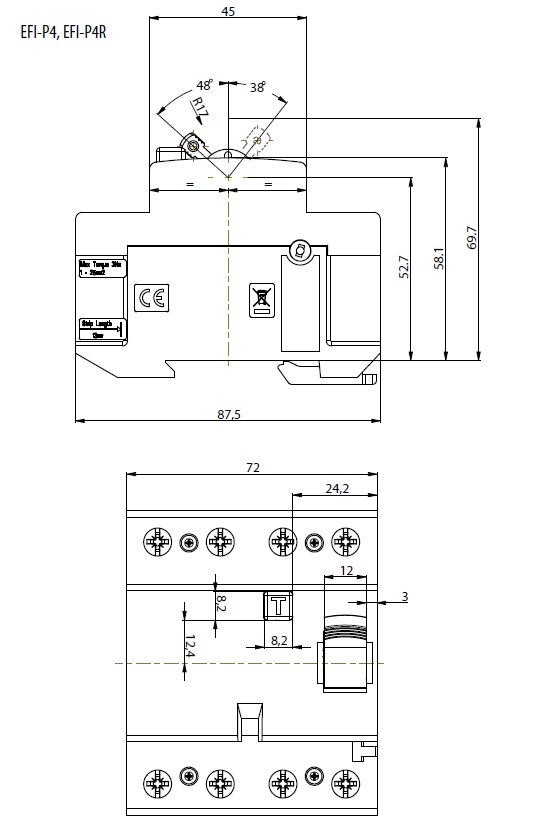

Slike in diagrami
