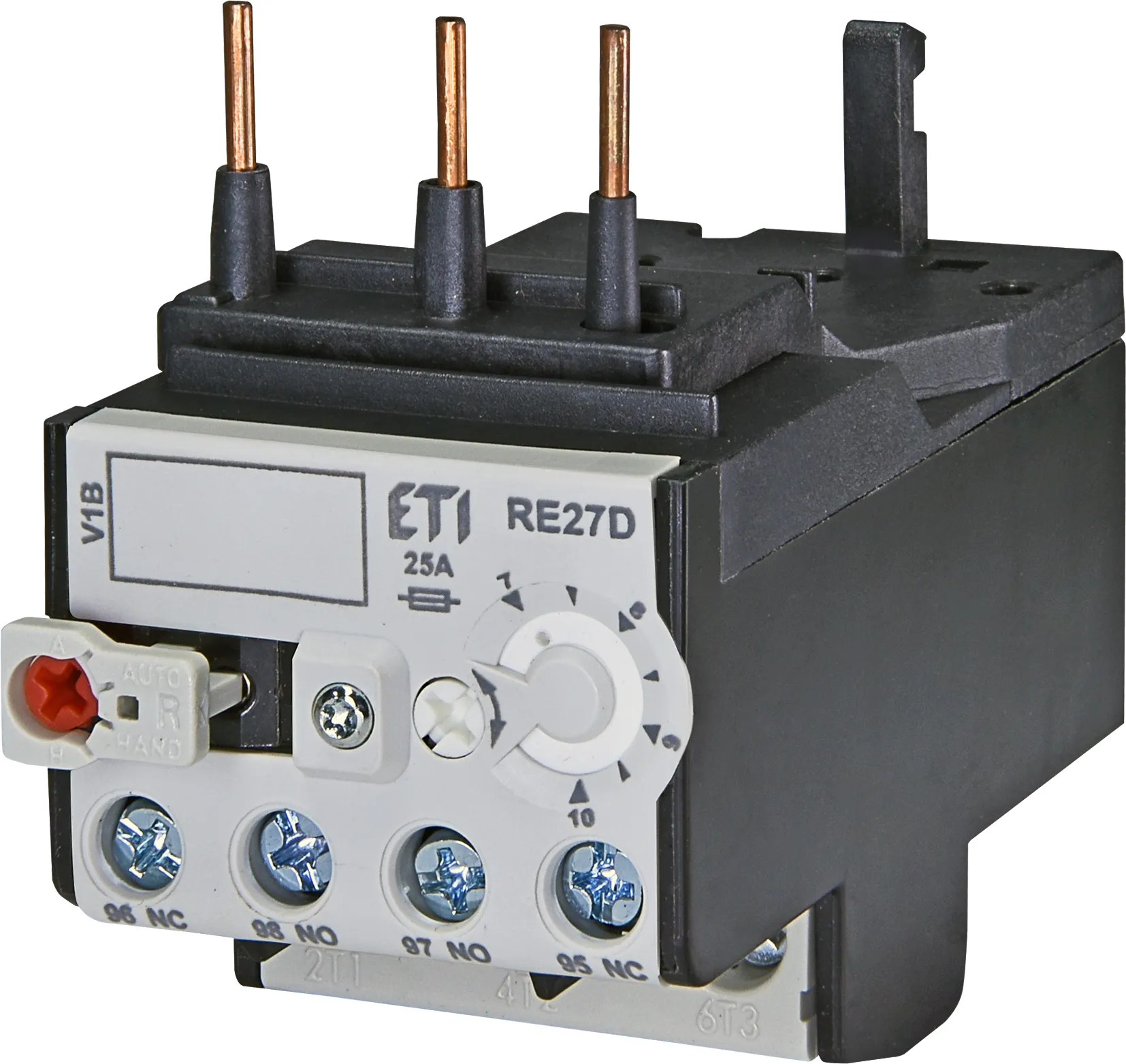

Preobremenitveni rele RE27D-10 004642409
Specifikacija
- Koda izdelka:
- 004642409
- Opis:
- RE27D-10
- Ime razreda:
- Preobremenitveni rele
- Funkcija:
- Preobremenitveni rele
- Funkcija pribora:
- Preobremenitveni rele
- Za uporabo z:
- CEM09…CEM25
- Izklopna karakteristika:
- Class 10
- Razpon tokovne nastavitve (A):
- 7.0-10A
Dokumenti
Logistični podatki
Produkt
- Carinska tarifa
- 85364900
- logis_net_width
- 45 mm
- logis_net_height
- 71 mm
- logis_net_depth
- 80 mm
Transportno pakiranje
- Količina
- 1
- EAN
- 7890355110218
- Teža
- 0.165 kg
- Odpremna količina
- 5333
ETIM klasifikacija
- Klasifikacija
- EC000106
- Ime razreda
- Thermal overload relay
- Adjustable current range
- 7.0…10A
- Mounting method
- Direct attachment/single positioning
- Type of electrical connection of main circuit
- Flat plug-in connection
- Number of auxiliary contacts as normally closed contact
- 1
- Number of auxiliary contacts as normally open contact
- 1
- Release class
- CLASS 10
Slike in diagrami
Programska oprema
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
Oznake
Pripomočki 50
>
>
0
RE27D-10
