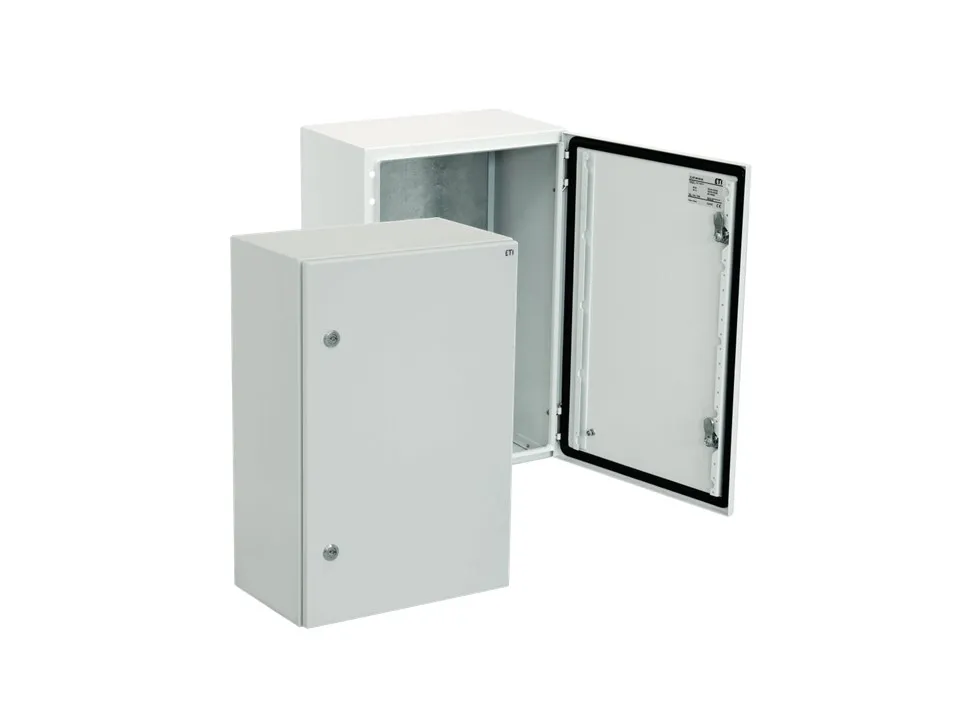

Omara GT 60-40-20 001102120

Specifikacija

Koda izdelka:
001102120
Opis:
GT 60-40-20
Ime razreda:
Omara
Stopnja zašcite:
I
IP zaščita:
IP66
Odpornost na udarce:
IK10
Višina (mm):
600
Širina (mm):
400
Globina (mm):
200
Aplikacije:
Notranja uporaba
Color:
RAL 7035

Dokumenti

Produkt

Carinska tarifa
85369001
logis_net_width
400  mm
logis_net_height
600  mm
logis_net_depth
200  mm

Osnovno pakiranje

Količina
1
EAN
3838895591931
Teža
14.12  kg

Transportno pakiranje

Količina
36
EAN
3838895591948
Teža
508.32  kg
Klasifikacija
EC000058
Ime razreda
Empty cabinet
Mounting method
Surface mounted (plaster)
Type of door
Single
Transparent cover/door
Ne
With lock
Da
Height
600mm
Width
400mm
Depth
200mm
Built-in depth
200mm
Colour
Grey
RAL-number
7035
Number of openings for flange plates
1
Housing material
Steel
Surface protection
Powder coating
With mounting plate
Da
Suitable for outdoor use
Ne
Degree of protection (IP)
IP66
Protection class
I
Impact strength
IK10
ETIM klasifikacija – Verzija 7.0
