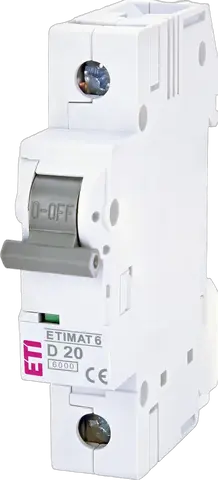

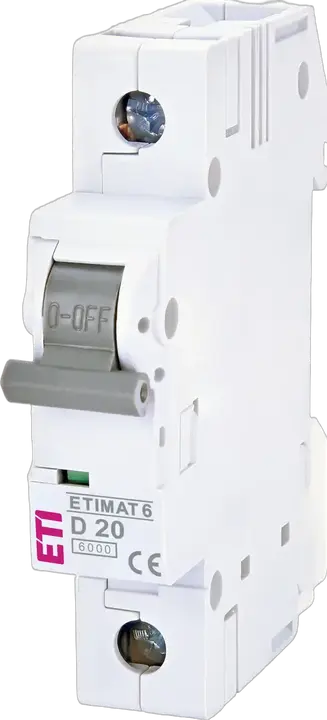

Inštalacijski odklopnik ETIMAT 6 1p D20 002161517
Specifikacija
- Koda izdelka:
- 002161517
- Opis:
- ETIMAT 6 1p D20
- Ime razreda:
- Inštalacijski odklopnik
- Nazivni tok (A):
- 20A
- Izklopna karakteristika:
- D
- Število polov:
- 1
- Nazivna kratkostična zmogljivost (kA):
- 6kA
- Vrsta napetosti:
- AC
- Nazivna AC napetost (V):
- 230V/400V
- Nazivna frekvenca (Hz):
- 50Hz/60Hz
- Nazivna impulzna vzdržna napetost Uimp (kV):
- 6kV
- Nazivni presek:
- 1mm²-25mm²
- Standardi:
- IEC/EN 60898-1,IEC 60947-2
- Funkcija:
- MCB SLO
Dokumenti
Logistični podatki
Produkt
- Teža izdelka
- 0.115 kg
- Carinska tarifa
- 85362010
- logis_net_width
- 18 mm
- logis_net_height
- 85 mm
- logis_net_depth
- 73 mm
Osnovno pakiranje
- Količina
- 1
- EAN
- 3838895647188
- Teža
- 0.105 kg
Transportno pakiranje
- Količina
- 12
- EAN
- 3838895647195
- Teža
- 1.7 kg
- Odpremna količina
- 624
ETIM klasifikacija
- Klasifikacija
- EC000042
- Ime razreda
- Miniature circuit breaker (MCB)
- Release characteristic
- D
- Number of poles (total)
- 1
- Number of protected poles
- 1
- Rated current
- 20A
- Rated voltage
- 230/400V
- Rated insulation voltage Ui
- 500V
- Rated impulse withstand voltage Uimp
- 4kV
- Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
- 6kA
- Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
- 6kA
- Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
- 6kA
- Voltage type
- AC
- Frequency
- 50…60Hz
- Over voltage category
- 3
- Pollution degree
- 3
- Additional equipment possible
- Da
- Width in number of modular spacings
- 1
- Built-in depth
- 68mm
- Degree of protection (IP)
- IP20
- Ambient temperature during operating
- -25…55°C
- Connectable conductor cross section multi-wired
- 1…25mm²
- Connectable conductor cross section solid-core
- 1…25mm²
