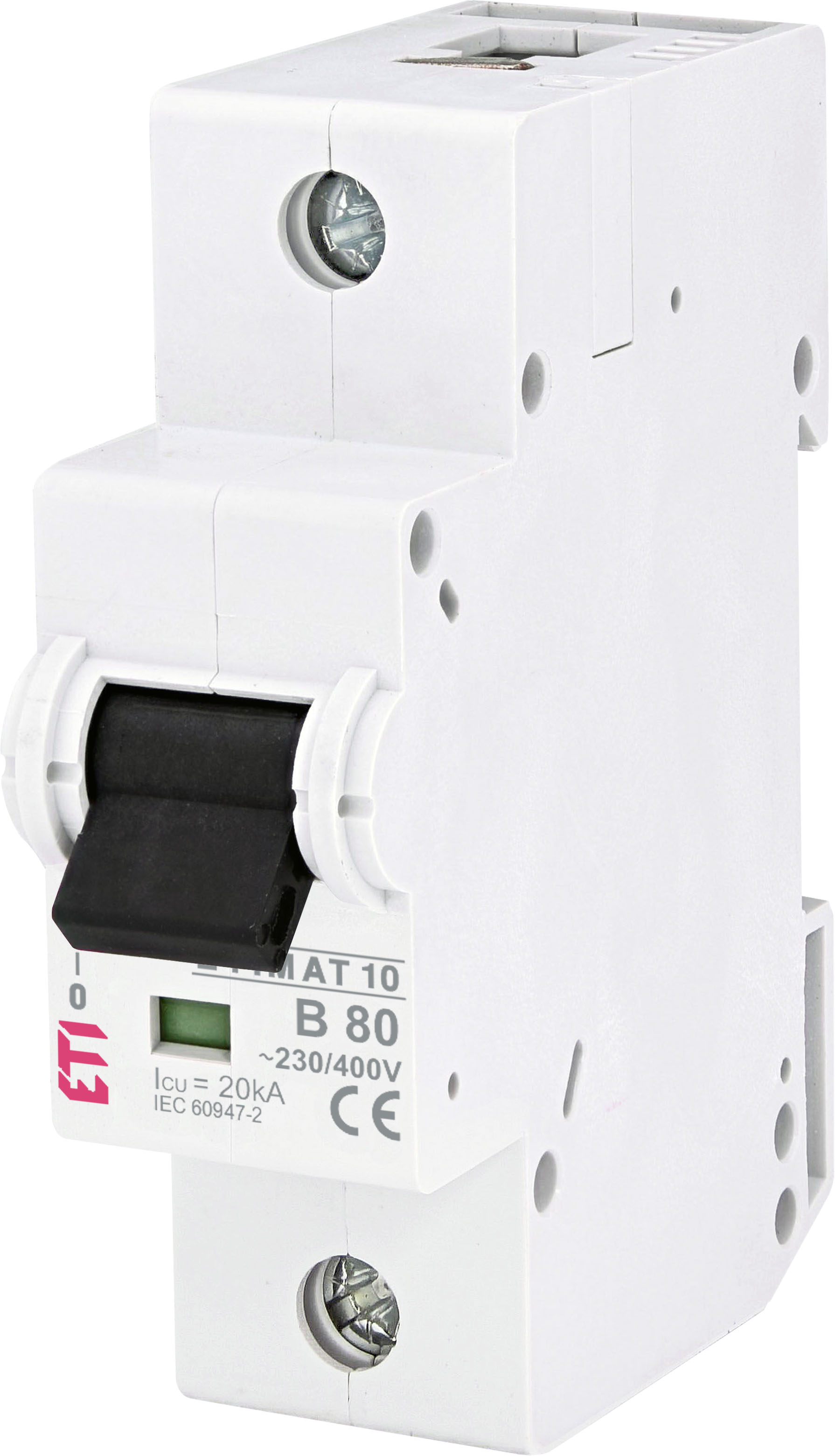

Inštalacijski odklopnik ETIMAT 10 1p B80 002121731
Specifikacija
- Koda izdelka:
- 002121731
- Opis:
- ETIMAT 10 1p B80
- Ime razreda:
- Inštalacijski odklopnik
- Nazivni tok (A):
- 80
- Izklopna karakteristika:
- B
- Število polov:
- 1
- Nazivna kratkostična zmogljivost (kA):
- 20
- Vrsta napetosti:
- AC
- Nazivna napetost (V):
- 240/415
- Nazivna frekvenca (Hz):
- 50/60
- Nazivna impulzna vzdržna napetost Uimp (kV):
- 4
- Nazivni presek:
- 2.5 - 50
- Standardi:
- IEC/EN 60898-1, IEC 60947-2
- Funkcija:
- Inštalacijski odklopniki
Dokumenti
Logistični podatki
Produkt
- EAN koda izdelka
- 3838895811121
- Teža izdelka
- 0.25 kg
- Carinska tarifa
- 85362090
- logis_net_width
- 27 mm
- logis_net_height
- 91 mm
- logis_net_depth
- 77 mm
Osnovno pakiranje
- Količina
- 2
- EAN
- 3838895811138
- Teža
- 0.52 kg
Transportno pakiranje
- Količina
- 72
- EAN
- 3838895811145
- Teža
- 18.96 kg
- Odpremna količina
- 3744
ETIM klasifikacija
- Klasifikacija
- EC000042
- Ime razreda
- Miniature circuit breaker (MCB)
- Release characteristic
- B
- Number of poles (total)
- 1
- Number of protected poles
- 1
- Rated current
- 80A
- Rated voltage
- 230/400V
- Rated insulation voltage Ui
- 440V
- Rated impulse withstand voltage Uimp
- 4kV
- Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
- 10kA
- Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
- 10kA
- Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
- 20kA
- Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
- 20kA
- Voltage type
- AC
- Type of drive
- 50…60Hz
- Current limiting class
- 3
- Over voltage category
- 3
- Pollution degree
- 3
- Additional equipment possible
- Da
- Width in number of modular spacings
- 1,5
- Built-in depth
- 75mm
- Degree of protection (IP)
- IP20
- Ambient temperature during operating
- -25…55°C
- Connectable conductor cross section multi-wired
- 2.5…50mm²
- Connectable conductor cross section solid-core
- 2.5…50mm²
