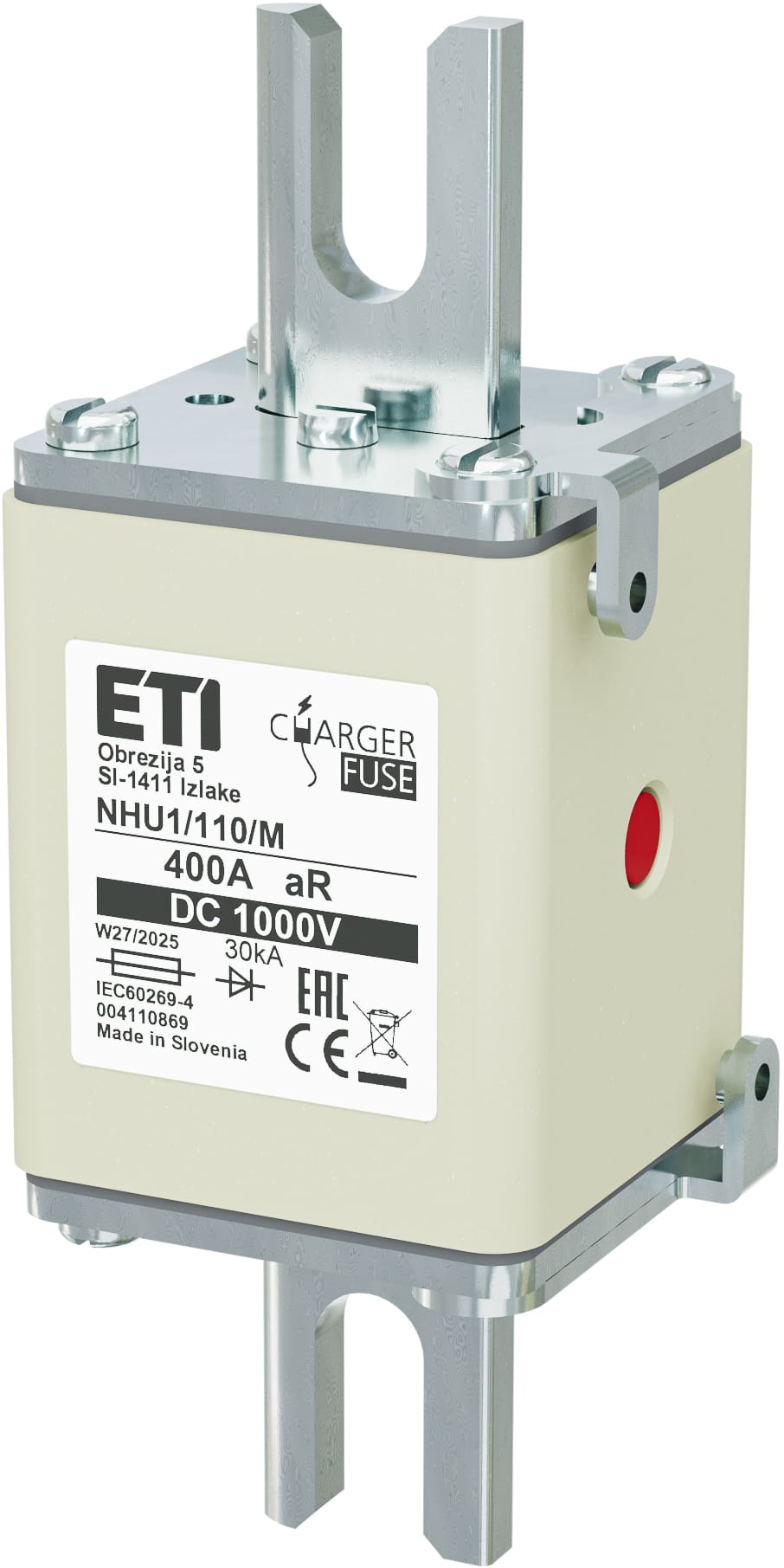

Talilni vložek NHU1/110/M aR 400A/1000V DC 004110869
Specifikacija
- Koda izdelka:
- 004110869
- Opis:
- NHU1/110/M aR 400A/1000V DC
- Ime razreda:
- Talilni vložek
- Aplikacije:
- For protection on DC side of EV chargers
- Standardi:
- IEC 60269-4
- Talilni Joulov integral (A2s):
- 31.000
- Izgubna moč (0,7xIn) (W):
- 28,8
- Izgubna moč (W):
- 83,2
- Skupni Joulov integral (A2s):
- 245.000
- L/R (ms):
- 2
- DC Izklopna zmogljivost (kA):
- 30
- Indikator:
- Središčni idikator
- Tip:
- NH-U
- Velikost:
- 1/110
- Nazivni tok (A):
- 400
- Nazivna enosmerna napetost (V):
- 1000
- Karakteristika:
- aR
Dokumenti
Logistični podatki
Produkt
- EAN koda izdelka
- 3838400111500
- Teža izdelka
- 0.6 kg
- Carinska tarifa
- 85361090
- logis_net_width
- 56 mm
- logis_net_height
- 139 mm
- logis_net_depth
- 51 mm
Osnovno pakiranje
- Količina
- 1
- EAN
- 3838400102676
- Teža
- 0.6 kg
Transportno pakiranje
- Količina
- 26
- EAN
- 3838400102683
- Teža
- 15.95 kg
- Odpremna količina
- 1352
ETIM klasifikacija
- Klasifikacija
- EC000055
- Ime razreda
- Low Voltage HRC fuse
- Construction size
- Other
- Rated current
- 400
- Rated voltage
- 1000
- Voltage type
- DC
- Rated switching capacity
- 30
- Utilization category
- aR (accompanied semiconductor protection)
- Type of fuse status indicator
- Centre fuse status indicator
- Insulated metal gripping lugs (IMGL)
- Ne
