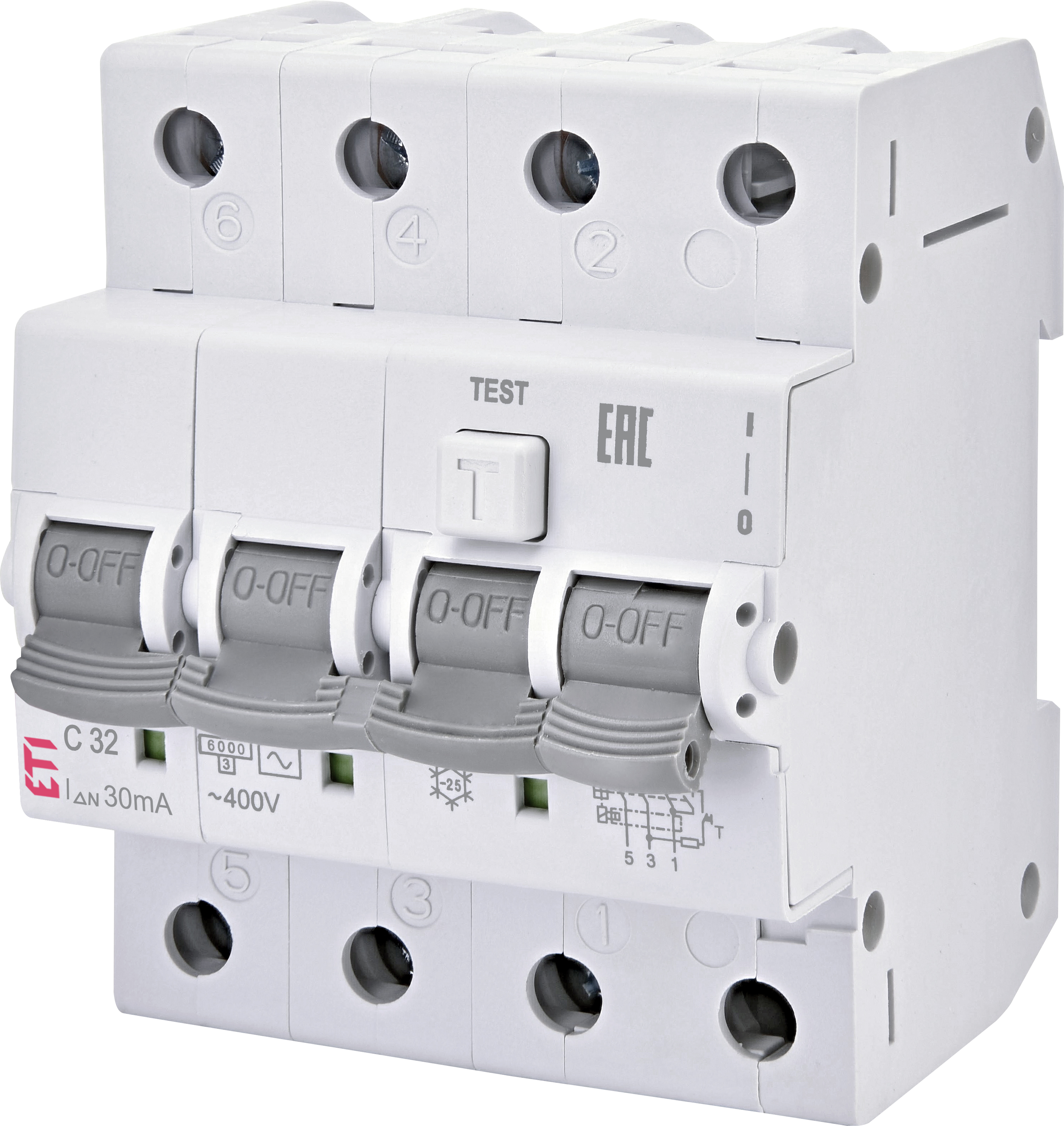

Kombinirano zaščitno stikalo KZS-4M 3p AC C32/0.03 002174827
Specifikacija
- Koda izdelka:
- 002174827
- Opis:
- KZS-4M 3p AC C32/0.03
- Ime razreda:
- Kombinirano zaščitno stikalo
- Nazivni diferenčni tok (A):
- 0.03
- Tip toka:
- AC
- Nazivni tok (A):
- 32
- Izklopna karakteristika:
- C
- Tip:
- AC
- Število polov:
- 3
- Nazivna kratkostična zmogljivost (kA):
- 10
- Nazivna napetost (V):
- 415
- Nazivna frekvenca (Hz):
- 50/60 Hz
- Nazivni presek:
- 1-25
- Standardi:
- IEC/EN 61009
Dokumenti
Logistični podatki
Produkt
- Carinska tarifa
- 85362010
- logis_net_width
- 70 mm
- logis_net_height
- 90 mm
- logis_net_depth
- 73 mm
Osnovno pakiranje
- Količina
- 1
- EAN
- 3838895575214
- Teža
- 0.51 kg
Transportno pakiranje
- Količina
- 27
- EAN
- 3838895575221
- Teža
- 14.27 kg
- Odpremna količina
- 1404
ETIM klasifikacija
- Klasifikacija
- EC000905
- Ime razreda
- Earth leakage circuit breaker
- Rated voltage
- 415V
- Rated current
- 32A
- Rated fault current
- 0,03A
- Leakage current type
- Other
- Rated short-circuit breaking capacity according to EN 61009
- 10kA
- Frequency
- Other
- Release characteristic
- C
- Connectable conductor cross section multi-wired
- 1…25mm²
