Kombinirano zaščitno stikalo KZS-2M2p A C10/0.03 002172522
Specifikacija
- Koda izdelka:
- 002172522
- Opis:
- KZS-2M2p A C10/0.03
- Ime razreda:
- Kombinirano zaščitno stikalo
- Nazivni diferenčni tok (A):
- 0.03
- Tip toka:
- A
- Nazivni tok (A):
- 10
- Izklopna karakteristika:
- C
- Tip:
- A
- Število polov:
- 2
- Nazivna kratkostična zmogljivost (kA):
- 10
- Nazivna napetost (V):
- 230
- Nazivna frekvenca (Hz):
- 50/60 Hz
- Nazivni presek:
- 1-25
- Standardi:
- IEC/EN 61009
Dokumenti
Logistični podatki
Produkt
- Carinska tarifa
- 85362010
- logis_net_width
- 36 mm
- logis_net_height
- 89 mm
- logis_net_depth
- 74 mm
Osnovno pakiranje
- Količina
- 1
- EAN
- 3838895625384
- Teža
- 0.242 kg
Transportno pakiranje
- Količina
- 54
- EAN
- 3838895625391
- Teža
- 13.418 kg
- Odpremna količina
- 2808
ETIM klasifikacija
- Klasifikacija
- EC000905
- Ime razreda
- Earth leakage circuit breaker
- Number of poles (total)
- 2
- Number of protected poles
- 2
- Rated voltage
- 230V
- Rated current
- 10A
- Rated fault current
- 0,03A
- Leakage current type
- A
- Current limiting class
- 3
- Rated short-circuit breaking capacity according to EN 61009
- 10kA
- Frequency
- 50/60 Hz
- Release characteristic
- C
- Concurrently switching neutral conductor
- Da
- Width in number of modular spacings
- 2
- Built-in depth
- 69mm
- Degree of protection (IP)
- IP20
- Connectable conductor cross section multi-wired
- 1…25mm²

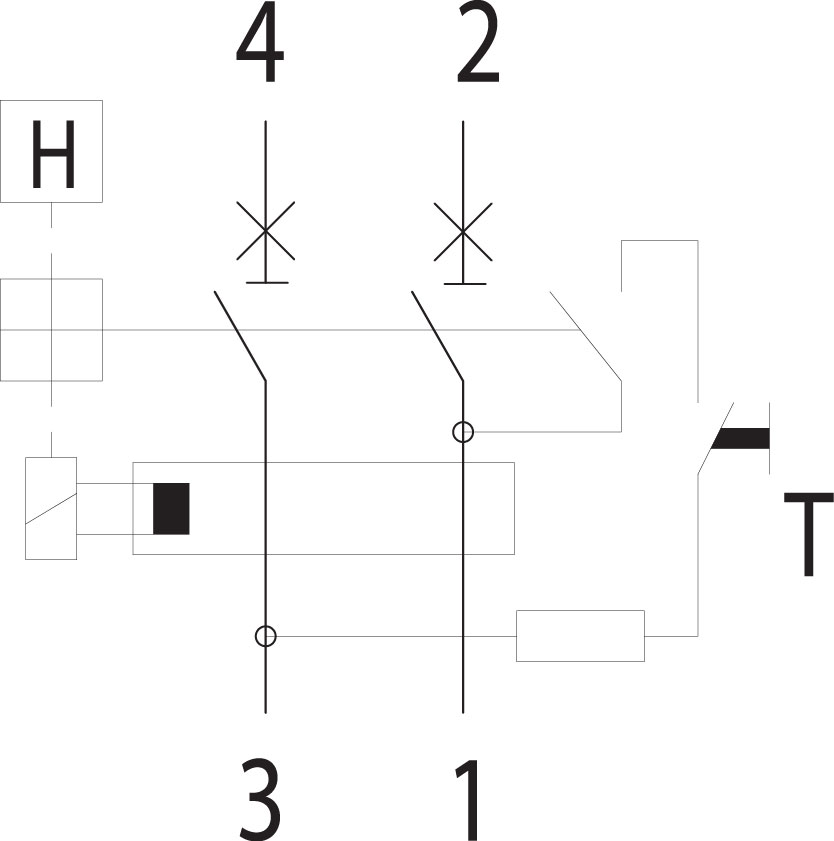

Slike in diagrami
