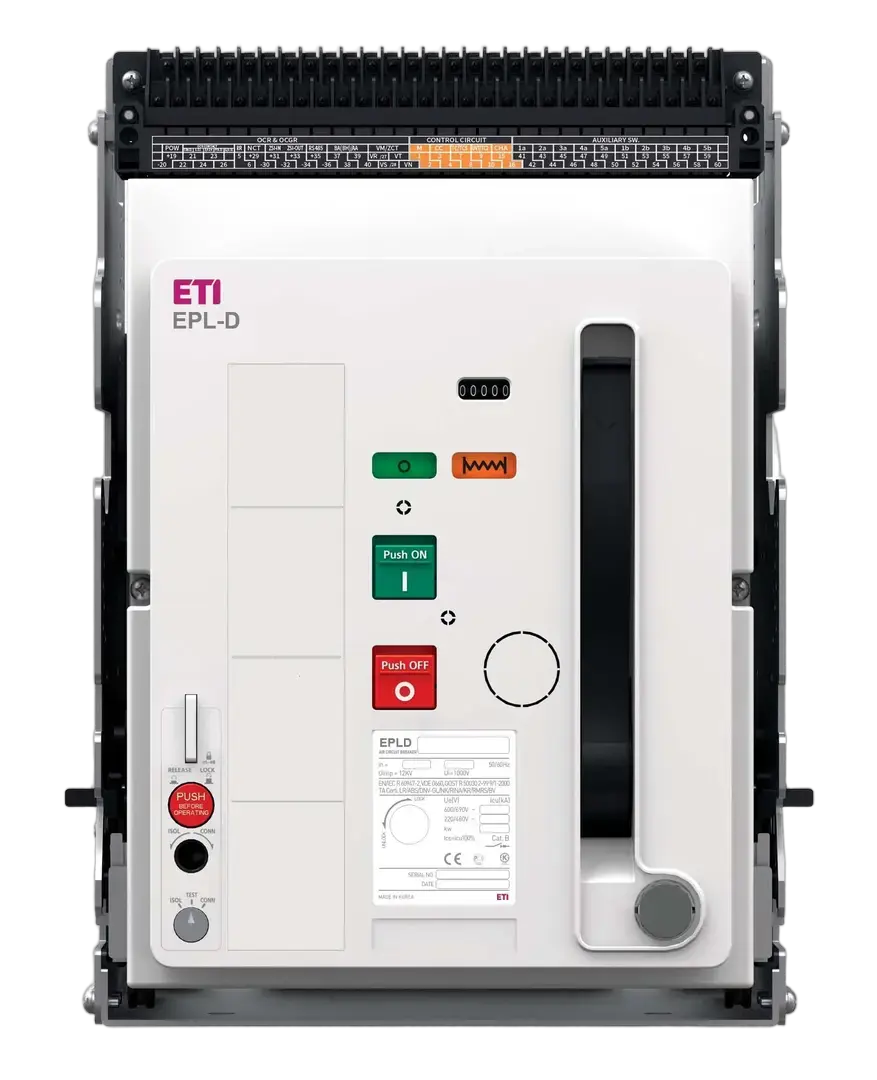

Ločilno stikalo EPL-D-25 4H BF/M2C2S2 004696630
Specifikacija
- Koda izdelka:
- 004696630
- Opis:
- EPL-D-25 4H BF/M2C2S2
- Ime razreda:
- Ločilno stikalo
- Nazivni tok (A):
- 2500
- Število polov:
- 4
- Nazivna impulzna vzdržna napetost Uimp (kV):
- 8
- Kataloška skupina:
- ETIPOWER
- Nazivna delovna napetost (V AC):
- 690
- Tip priključitve:
- Zadnji kontakt
- Standardi:
- 60947-3
Dokumenti
Logistični podatki
Produkt
- Carinska tarifa
- 85362090
Osnovno pakiranje
- Količina
- 1
- EAN
- 3838400108142
- Teža
- 54.43 kg
Transportno pakiranje
- Količina
- 6
- EAN
- 3838400108173
- Teža
- 400 kg
- Odpremna količina
- 6
COM_ETISTORE_ITEM_TITLE_LOGISTIC_DATA_SECTION4
- qty
- 1 pcs
- Teža
- 61.43 kg
- Višina (mm)
- 650 mm
- Globina (mm)
- 620 mm
- volume
- 423.15 dm3
ETIM klasifikacija
- Klasifikacija
- EC000228
- Ime razreda
- Power circuit-breaker for trafo/generator/installation protection
- Rated permanent current Iu
- 2500A
- Rated voltage
- 690…690V
- Integrated earth fault protection
- Da
- Type of electrical connection of main circuit
- Bolt connection
- Device construction
- Built-in device fixed built-in technique
- Suitable for DIN rail (top hat rail) mounting
- Ne
- DIN rail (top hat rail) mounting optional
- Ne
- With switched-off indicator
- Da
- With under voltage release
- Ne
- Number of poles
- 4
- Position of connection for main current circuit
- Back side
- Type of control element
- Push button
- Complete device with protection unit
- Da
- Motor drive integrated
- Da
- Motor drive optional
- Da
- Degree of protection (IP)
- IP20
