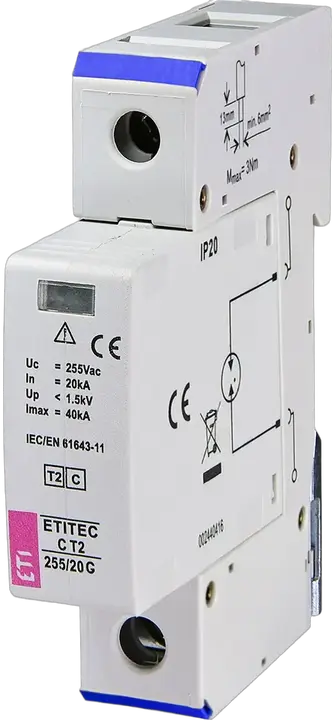

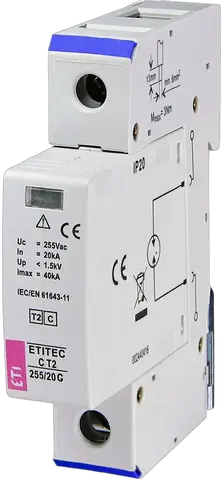

Prenapetostni odvodnik ETITEC C T2 255/20 G 002440413
Specifikacija
- Koda izdelka:
- 002440413
- Opis:
- ETITEC C T2 255/20 G
- Ime razreda:
- Prenapetostni odvodnik
- AC max continous operating voltage Uc:
- 255
- Tip:
- T2
- In (8/20) (kA):
- 20
- Imax(8/20) (kA):
- 40
- Up - Stopnja zaščite (kV):
- 1,5
- Uhajavi tok:
- JA
- Uporabljena tehnologija:
- MOV
- Daljinska signalizacija:
- Ne
- Sistem omrežja:
- TT/TN-S
- Število modulov:
- 1
- Built-in depth (mm):
- 66
- Funkcija:
- SPD
- Kataloška skupina:
- ETITEC C
Dokumenti
Logistični podatki
Produkt
- Carinska tarifa
- 85363090
- logis_net_width
- 18 mm
- logis_net_height
- 94 mm
- logis_net_depth
- 73 mm
Osnovno pakiranje
- Količina
- 1
- EAN
- 3838895773085
- Teža
- 0.155 kg
Transportno pakiranje
- Količina
- 12
- EAN
- 3838895773092
- Teža
- 1.941 kg
- Odpremna količina
- 4032
ETIM klasifikacija
- Klasifikacija
- EC000941
- Ime razreda
- Surge protection device for power supply systems
- System configuration DC
- Ne
- System configuration IT
- Ne
- System configuration TN
- Da
- System configuration TN-C
- Da
- System configuration TN-S
- Da
- System configuration TT
- Da
- System configuration other
- Ne
- Number of conductors (without earthing)
- 1
- Nominal discharge surge current (8/20)
- 20
- Nominal voltage AC
- 230
- Short-circuit breaking capacity (Isccr)
- 25
- Max. continuous voltage AC
- 255
- Max. discharge surge current (8/20)
- 40
- Mounting method
- DIN rail (top hat rail) 35 mm
- Construction size
- 1 modular spacing
- Voltage protection level
- 1,5
- Max. conductor cross section solid (solid, stranded)
- 35
- Max. conductor cross section flexible (fine-strand)
- 25
- Voltage protection level L-N
- 1,5
- Voltage protection level N-PE
- 1,5
- With remote signalling contact
- Ne
- Integrated backup fuse
- Ne
- Signalling at the device
- Optical
- Category type 2
- Da
- Degree of protection (IP)
- IP20
