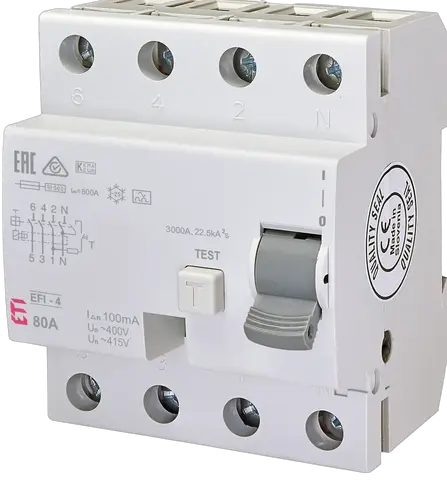

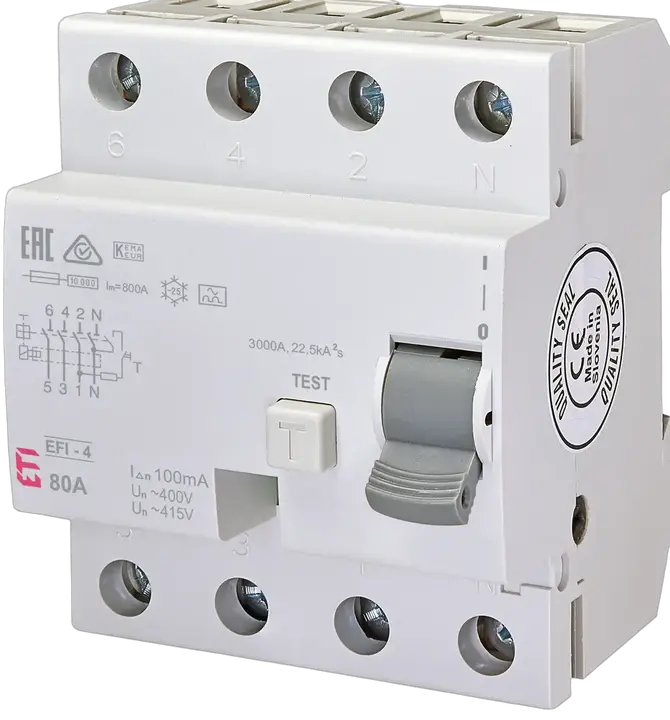

Zaš. stikalo na diferenčni tok EFI-4 A 80/0.1 002063545
Specifikacija
- Koda izdelka:
- 002063545
- Opis:
- EFI-4 A 80/0.1
- Ime razreda:
- Zaš. stikalo na diferenčni tok
- Nazivni diferenčni tok (A):
- 0.1
- Tip toka:
- A
- Nazivni tok (A):
- 80
- Tip:
- A
- Število polov:
- 3+N
- Nazivni pogojni kratkostični tok Inc (kA):
- 10
- Nazivna napetost (V):
- 415
- Nazivna frekvenca (Hz):
- 50/60
- Nazivni presek:
- 1-25
- Standardi:
- IEC/EN 61008
- IP zaščita:
- IP20
- Način montaže:
- TH 35
- Globina (mm):
- 68
Dokumenti
Logistični podatki
Produkt
- Carinska tarifa
- 85362090
- logis_net_width
- 72 mm
- logis_net_height
- 88 mm
- logis_net_depth
- 70 mm
Osnovno pakiranje
- Količina
- 1
- EAN
- 3838895129073
- Teža
- 0.362 kg
Transportno pakiranje
- Količina
- 27
- EAN
- 3838895276968
- Teža
- 10.13 kg
- Odpremna količina
- 1404
ETIM klasifikacija
- Klasifikacija
- EC000003
- Ime razreda
- Residual current circuit breaker (RCCB)
- Number of poles
- 4
- Rated voltage
- 415V
- Rated current
- 80A
- Rated fault current
- 100mA
- Mounting method
- DIN rail
- Leakage current type
- A
- Short-circuit breaking capacity (Icw)
- 10kA
- Frequency
- 50/60 Hz
- Additional equipment possible
- Da
- Degree of protection (IP)
- IP20
- Width in number of modular spacings
- 4
- Built-in depth
- 68mm
- Ambient temperature during operating
- -25…55°C
- Connectable conductor cross section multi-wired
- 1…25mm²
- Connectable conductor cross section solid-core
- 1…25mm²
