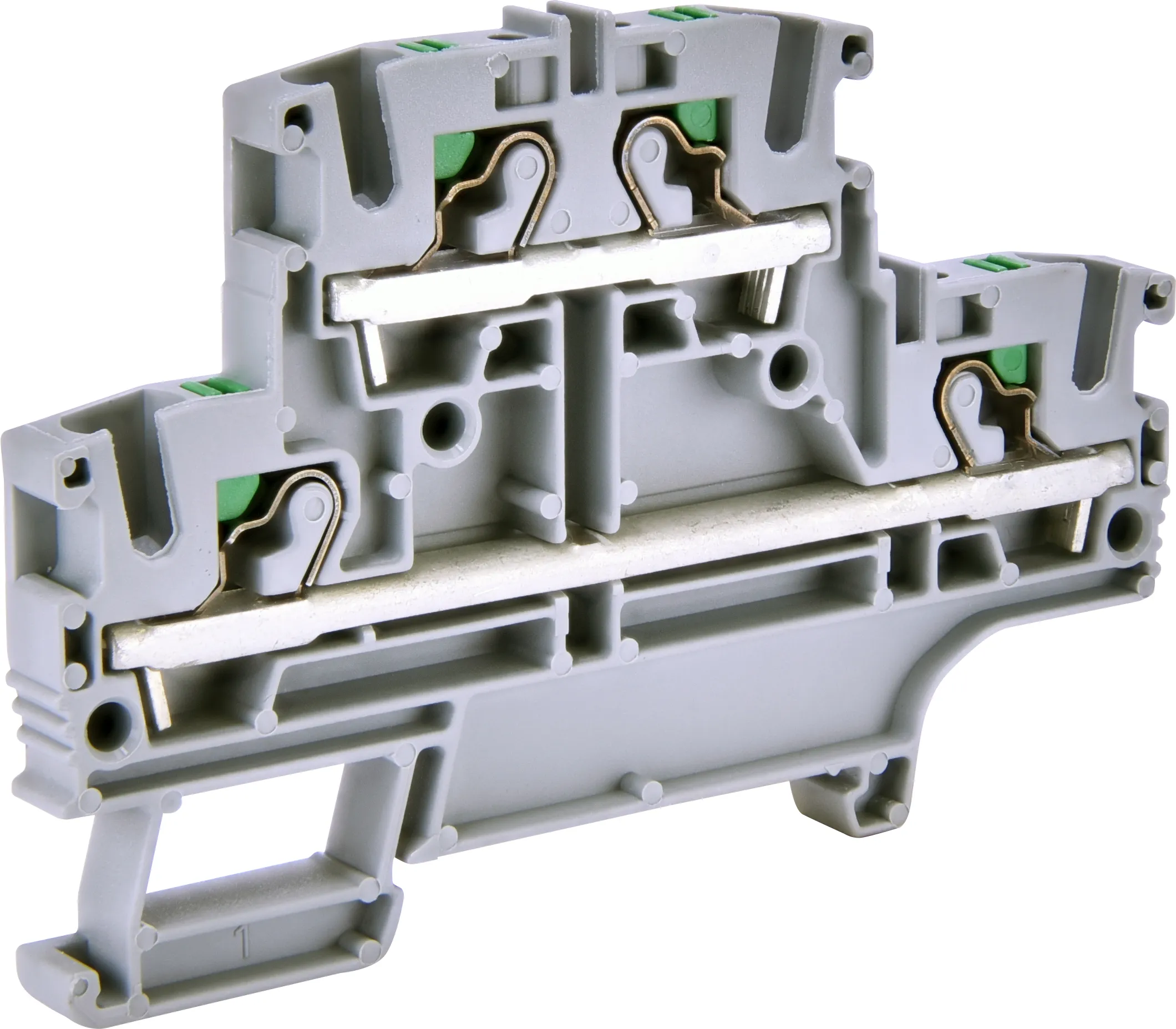

Vrstna sponka ESH-EFD.4 003903268
Specifikacija
- Koda izdelka:
- 003903268
- Opis:
- ESH-EFD.4
- Ime razreda:
- Vrstna sponka
- Montaža:
- DIN letev (top hat rail) 35 mm
- Stopnja:
- Nadstropna sponka
- Nazivna napetost (V):
- 800
- Tip:
- ESH Push-in vzmetne vrstne sponke
- Nazivna impulzna vzdržna napetost Uimp (kV):
- 6 kV
- Color:
- Siva
- Nazivni presek:
- 4
- Največji tok pri nazivnem preseku vodnika (mm2):
- 29
- Največji tok pri maksimalnem preseku vodnika (mm2):
- none
- Presek golega vodnika (mm2):
- 0.2 - 6
- Povezovalni mostič:
- YES
- Zaključna ploščica potrebna:
- YES
Dokumenti
Logistični podatki
Produkt
- EAN koda izdelka
- 3838895869856
- Teža izdelka
- 0.018 kg
- Carinska tarifa
- 85369010
- logis_net_width
- 6 mm
- logis_net_height
- 82 mm
- logis_net_depth
- 56 mm
Transportno pakiranje
- Količina
- 100
- EAN
- 3838895869863
- Teža
- 1.9 kg
- Odpremna količina
- 15600
ETIM klasifikacija
- Klasifikacija
- EC000897
- Ime razreda
- Feed-through terminal block
- Connectable conductor cross section fine-strand without cable end sleeve
- 0.2…6
- Connectable conductor cross section fine-strand with cable end sleeve
- 0.2…4
- Connectable conductor cross section solid-core
- 0.2…6
- Connectable conductor cross section multi-wired
- 0.2…6
- Rated current In
- 29
- Rated voltage
- 800
- Type of electrical connection 1
- Spring clamp connection
- Type of electrical connection 2
- Spring clamp connection
- Number of levels
- 2
- Number of clamp positions per level
- 2
- Mounting method
- DIN rail (top hat rail) 35 mm
- Material insulation body
- Other
- Operating temperature
- -40…110
- Inflammability class of insulation material according to with UL94
- V0
- Closing plate required
- Da
- Colour
- Grey
- Internally connected stages
- Da
