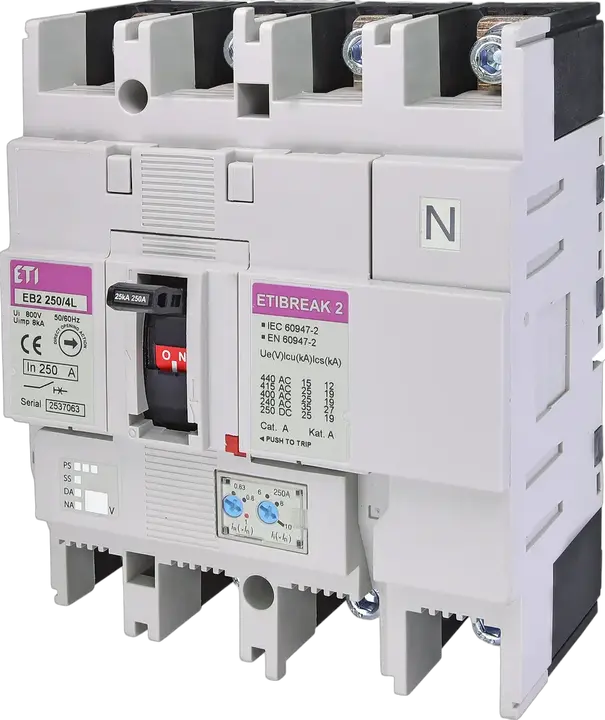

Kompaktni odklopnik EB2 250/4S 250A 4p 004671086
Specifikacija
- Koda izdelka:
- 004671086
- Opis:
- EB2 250/4S 250A 4p
- Ime razreda:
- Kompaktni odklopnik
- Kataloška skupina:
- EB2
- Nazivni tok (A):
- 250
- Število polov:
- 4
- Tip priključitve:
- Sprednji kontakt
- Nazivna impulzna vzdržna napetost Uimp (kV):
- 8
- Nazivna izklopna kratkostična zmogljivost pri 415V Icu/Ics (kA):
- 36/36
- Nazivna delovna napetost (V AC):
- 690V
- Nazivna napetost (V DC):
- 250V
- Nazivna izolacijska napetost (V):
- 800
- Termo nastavitve:
- 0,63-1
- Magnetne nastavitve:
- 6-10
- Nastavljivo ali fiksno:
- Nastavljiv
- Standardi:
- 60947
Dokumenti
Logistični podatki
Produkt
- Carinska tarifa
- 85362090
- logis_net_width
- 140 mm
- logis_net_height
- 165 mm
- logis_net_depth
- 92 mm
Transportno pakiranje
- Količina
- 1
- EAN
- 3838895409847
- Teža
- 1.9 kg
- Odpremna količina
- 421
ETIM klasifikacija
- Klasifikacija
- EC000228
- Ime razreda
- Power circuit-breaker for trafo/generator/installation protection
- Rated permanent current Iu
- 250A
- Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
- 36/36kA
- Overload release current setting
- 157.5…250A
- Adjustment range undelayed short-circuit release
- 1500…2500A
- Type of electrical connection of main circuit
- Screw connection
- Device construction
- Built-in device fixed built-in technique
- With switched-off indicator
- Da
- Number of poles
- 4
- Type of control element
- Rocker lever
- Motor drive integrated
- Ne
- Motor drive optional
- Da
- Degree of protection (IP)
- IP20
