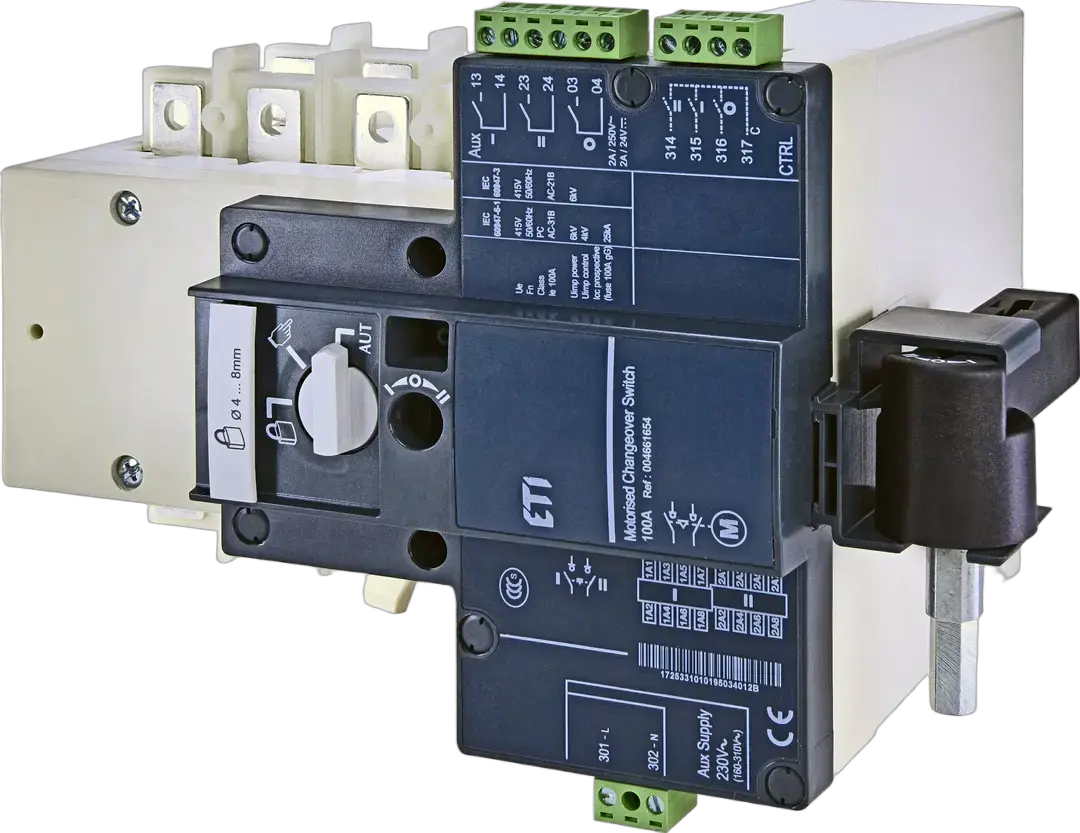

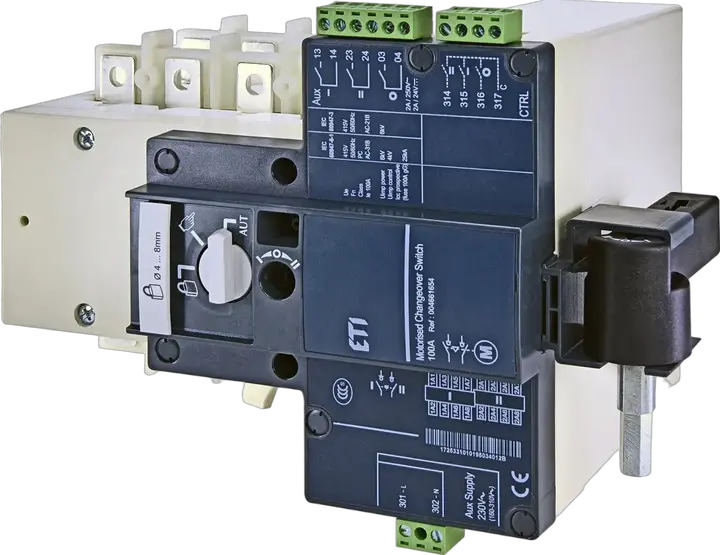

Preklopno stikalo - mot. pogon MLBS 100 4P CO 230VAC 004661654
Specifikacija
- Koda izdelka:
- 004661654
- Opis:
- MLBS 100 4P CO 230VAC
- Ime razreda:
- Preklopno stikalo - mot. pogon
- Število polov:
- 4
- Termični tok Ith (A):
- 100
- Nazivni obratovalni tok Ie AC-21 A/B pri 415V (A):
- 100
- Nazivna izolacijska napetost (V):
- 800
- Maks. Nazivna obratovalna napetost (V AC):
- 690
- Montaža:
- Montaža na ploščo
- Krmilna napetost (V):
- 230 V AC
Dokumenti
Logistični podatki
Produkt
- Carinska tarifa
- 85365080
- logis_net_width
- 235 mm
- logis_net_height
- 163 mm
- logis_net_depth
- 182 mm
Transportno pakiranje
- Količina
- 1
- EAN
- 3838895720201
- Teža
- 3.35 kg
- Odpremna količina
- 120
ETIM klasifikacija
- Klasifikacija
- EC000216
- Ime razreda
- Switch disconnector
- Version as main switch
- Da
- Version as maintenance-/service switch
- Da
- Max. rated operation voltage Ue AC
- 415V
- Rated permanent current Iu
- 100A
- Number of poles
- 4
- Motor drive integrated
- Da
- Voltage release optional
- Ne
- Device construction
- Complete device in housing
- Suitable for floor mounting
- Da
- Type of control element
- Toggle
