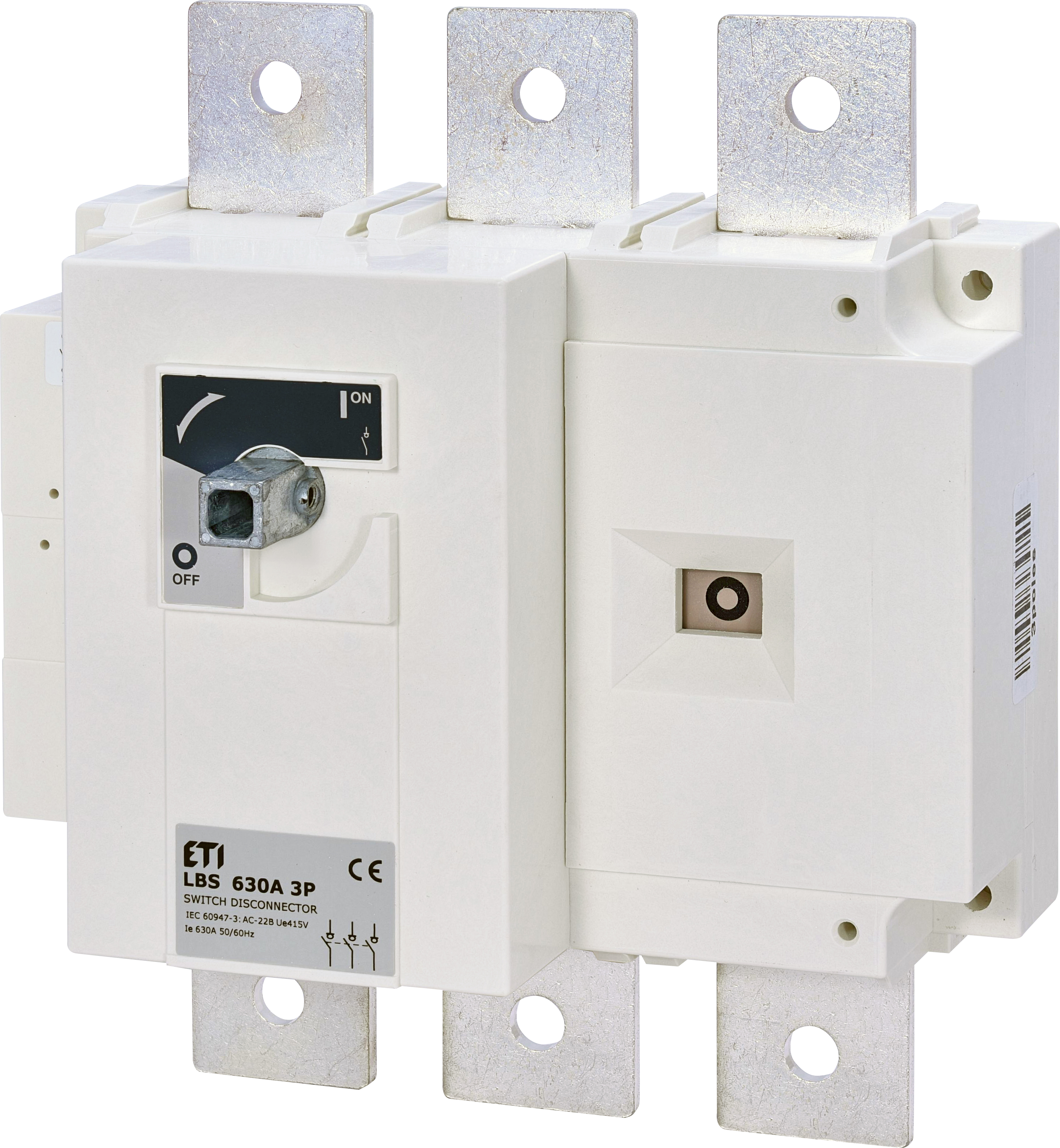

LBS 630 3P 004661453

Specifikacija

Koda izdelka:
004661453
Opis:
LBS 630 3P
Število polov:
3
Termični tok Ith (A):
630
Nazivni obratovalni tok Ie AC-21 A/B pri 415V (A):
630
Nazivna izolacijska napetost (V):
1000
Maks. Nazivna obratovalna napetost (V AC):
415
Montaža:
Montaža na ploščo

Dokumenti

Produkt

EAN koda izdelka
Teža izdelka
4.363 kg
Carinska tarifa
85365080

Osnovno pakiranje

Osnovno pakiranje
1
EAN koda osnovnega pakiranja
3838895718864
Teža osnovnega pakiranja
4.363 kg
Volumen osnovnega pakiranja
14.08

Transportno pakiranje

Pakirna količina
1
EAN koda odpremnega pakiranja
3838895718864
Teža odpremnega pakiranja
4.363 kg
Volumen pakirne embalaže
14.08
Odpremna količina
70
Volumen paletnega pakiranja
985.6

Programska oprema

Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
004661453Switch disconnector, LBS 630 3PETISWITCHLoad Break SwitchLBSLBS body (no handle included) 3/4 POLESLBS body(no handle included) 3/4 POLES3PSwitches for panel mountingLoad break switch LBSLBS 630 3PRated current 630ANo. Of poles 3Mounting Panel mountedCatalogue Group Load Break Switch LBSMax. rated operational voltage 415V ACRated operational current Ie AC-21 A/B at 415V 630ARated insulation voltage 1000VThermal current Ith 630ASwitch disconnector LBS Panel mounted 3 630A 1000V
